JIS B2220 20K SOHRF hub flange

Standard: JIS B2220

Type: slip on hubbed flange

Nominal pressure: 16k, 20k, 30k

Nominal size: 10A-1200A

Material: F304L, F316L

Flange face: RF

Brand: TC METAL

Technology: by forging

Raw material: ingot, bar or billet

Delivery condition: solution or normalizing

Certificate: MTC or EN10204 3.1 as per NACE MR0175

Quality system: ISO9001; PED 97/23/EC

Lead time: 15-30 days depending on quantity

Payment term: T/T, L/C, D/P

Origin: Jiangyin, China

Loading port: Shanghai, China

Package: suitable for seaway transportation, ply wooden case with plastic film sealed

MOQ: 100ea

Drawing:

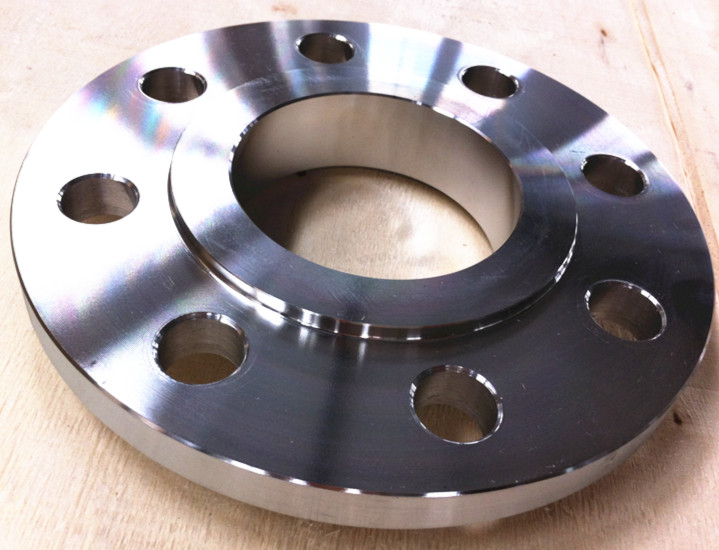

Product:

Manufacture process:

Jiangyin Tuochuan Metal Materials Co., Ltd is a professional manufacture of stainless steel forged flanges for many years. We have two factories, one forging factory in Yancheng, another machining factory in Jiangyin with an annual production capacity 2000 tons. Our forging factory equipped with pressing machine and hammer, can forging up to 24inch flange. Our machining factory equipped with the most advanced CNC lath, CNC drilling lath, ultrasonic cleaning machine, which guarantee our flanges accuracy and good surface.

Our Product:

1. Weld neck flange

2. Blind flange

3. Slip on flange

4. Plate flange

5. Loose flange

6. Long weld neck flange

7. Valve components-valve seat ring
